M0118 NFC
Contact UsProduct specifications
Sensor
640*480 CMOS
Illumination
White LED

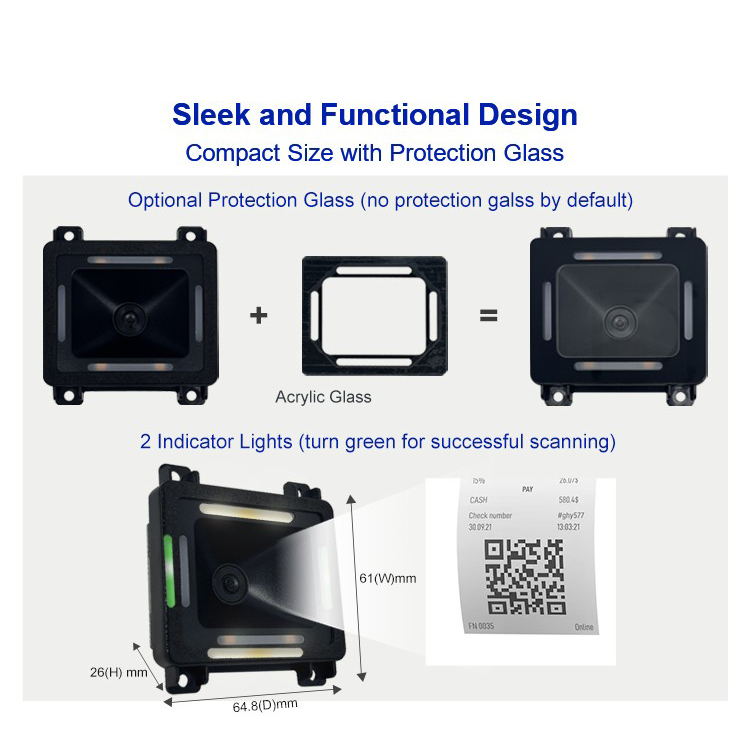

Size
61(W)*64.8(D)*26(H) mm
Weight
30g
Interface
USB/ TTL-232/ RS232/ RS485/Wiegand
Field of VIew
Diagonal 87.1°, Horizontal 74°, Vertical 65°
Features
![](https://www.lonvillscan.com/upload/files/article/20231228/17037557822299766.png)
1D
![](https://www.lonvillscan.com/upload/files/article/20231228/17037558012635038.png)
2D
![](https://www.lonvillscan.com/upload/files/article/20231229/17038292029582266.png)
USB
![](https://www.lonvillscan.com/upload/files/article/20231229/17038397212336431.png)
TTL
Application Scenarios
![](https://www.lonvillscan.com/upload/files/article/20231229/17038397394610363.png)
Vending Machine
![](https://www.lonvillscan.com/upload/files/article/20231229/17038397397472695.png)
Kiosk
Features
Specifications
PRODUCT FEATURES
• Reliable Barcode Reading
Reliable reading performance, smooth reading of paper and screen barcodes / 2D codes
• NFC Card Sensing
NFC sensing, supports 25 kinds of cards, stable card reading
• Soft LED Vision
Soft LED, direct vision without glare
• Versatile Interface Options
Multiple optional interfaces: USB/RS232/RS485/TTL/Wiegand
• Wide Application Range
Wide range of application scenarios, suitable for self-service payment, access control, turnstile, etc.
PRODUCT ATTRIBUTES
Performance | |
---|---|
Image Sensor | 640*480 CMOS |
Illumination | White LED |
Scan Angle | Roll ⼠360°, Skew ⼠70°, Pitch ⼠70° |
Field of VIew | Diagonal 87.1°, horizontal 74°, vertical 65° |
Symbologies | 2D: Aztec Code/ HANXIN/ Maxicode/ Codablock F/ Data Matrix Code (DPM)/ PDF417/ Micro PDF417/ QR Code/ Micro QR Code/ DOT Code/ Grid Matrix Code 1D: Codabar/ Code 11/ Code 128/ Code 39/ Code 93/ EAN-8/EAN-13/ GS1 DataBar/ UPC-A/ UPC-E/ Interleaved 2 of 5/ Industrial 2 of 5/ Matrix 2 of 5/ Straight 2 of 5 IATA/ MSI Plesse |
Accuracy | ≥5mil |
Print Contrast | ≥20% |
Depth of Field (typ.) | EAN-13 (13mil) 10mm~100mm(size: 31mm*7mm) Code39 (5mil) 20mm~60mm(size: 25mm*10mm) QR Code (15mil) 5mm~90mm(size: 8mm*8mm) |
NFC reading distance | 0mm-40mm |
Interface | USB/ TTL-232/ RS232/ RS485/Wiegand |
Dimension | 61(W)×64.8(D)×26(H) mm |
Weight | 30g |
Indication | LED light, Buzzer |
Operating Temp. | 0°C~+50°C |
Storage Temp. | -20°C~+70°C |
Operating Voltage | 4.8V DC-16V DC |
Power Consumption | 1500mW (typ.) |
Current@5V DC | Operating 300mA (typ.) 400mA (max.) Standby 130mA |
Humidity | 5%-95% (non-condensing) |
Ambient Light | 0-100000Lux |
Protection Grade | IP50 |
Drop Specs | 1.2m |
Electrostatic Protection | ESD meets EN61000-4-2, ±15KV air discharge, ±8KV contact discharge |
LED Security Level | IEC 62471 |
