Y80-ER
Contact UsProduct specifications
Sensor
1280*800 CMOS
Illumination
White LED
Accuracy*
≥5mil
Print Contrast*
≥20%
Dimension
90(W)×78(D)×51(H) (max)
Operating Voltage
4.8 ~ 16 VDC
Features
![](https://www.lonvillscan.com/upload/files/article/20231229/17038420659715842.png)
1D
![](https://www.lonvillscan.com/upload/files/article/20231229/17038420654233249.png)
2D
![](https://www.lonvillscan.com/upload/files/article/20231229/17038420708055449.png)
CMOS
![](https://www.lonvillscan.com/upload/files/article/20231229/17038420801861775.png)
USB
![](https://www.lonvillscan.com/upload/files/article/20240403/17121127278591769.png)
RS232
![](https://www.lonvillscan.com/upload/files/article/20240403/17121127335497704.png)
RS485
![](https://www.lonvillscan.com/upload/files/article/20240403/17121127347582318.png)
TTL
![](https://www.lonvillscan.com/upload/files/article/20240403/17121127378988045.png)
Wiegand

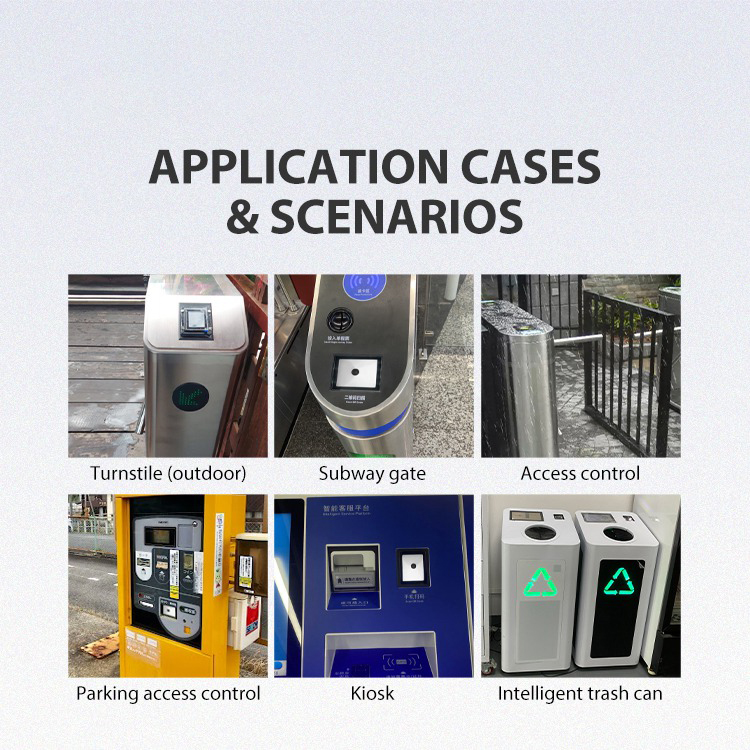

Application Scenarios
![](https://www.lonvillscan.com/upload/files/article/20231229/17038421053564169.png)
Parking lot
![](https://www.lonvillscan.com/upload/files/article/20240403/17121127656870662.png)
Access control
Features
Specifications
PRODUCT FEATURES

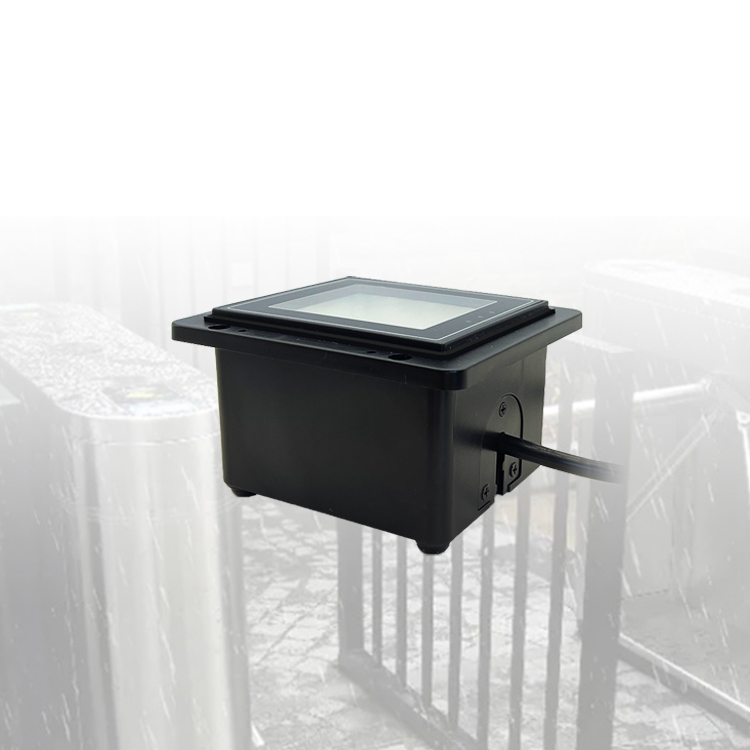

• Rugged Outdoor Fixed Barcode Scanner

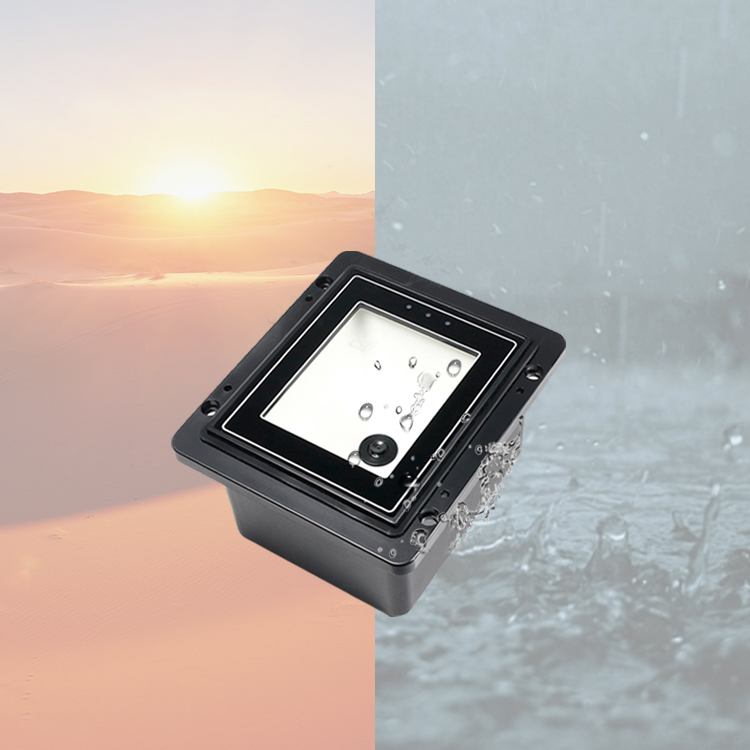

High temperature resistance, low temperature resistance, weather resistance, electrical insulation performance

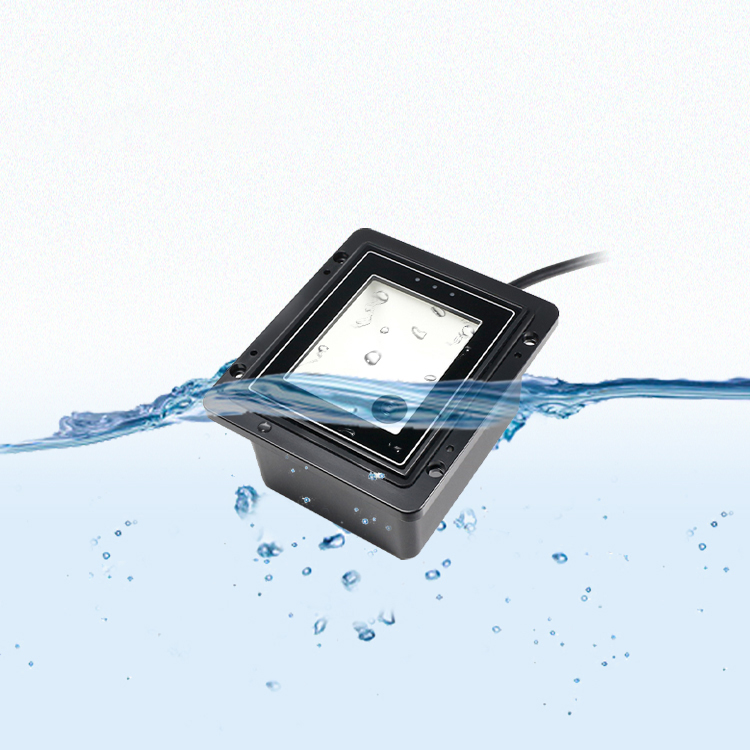

• IP65 Waterproof and Dustproof
Excellent triple-proof performance (moisture-proof, salt spray-proof, mold-proof), which prolong the life of the barcode scanner module.
• Long-range Scanning Function
Large Depth of Field,Long range scanning,extended depth for QR codes (20mm to 1100mm)
• Multiple Optional Interfaces:
USB, RS232, RS485, TTL, Wiegand optional
• Operating Voltage:
Wide range: 4.8 to 16 VDC. Suitable for Various Applications.
PRODUCT ATTRIBUTES
Performance | |
---|---|
Sensor | 1280 * 800 CMOS |
Illumination | White LED |
Decode Capacity | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 32, Code 93, Code 11,Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5 (IATA) ,Coda bar, GS1 Databar, etc 2D: QR Code, Micro QR, Data Matrix, PDF417, Aztec code, Hanxi code etc |
Accuracy* | ≥5mil |
Depth of Field | QR Code (15mil) 20mm~1100mm |
Print Contrast* | ≥20% |
Scan Angle** | Skew Tolerance ±70°, Pitch Tolerance ±70°, Roll Tolerance 360° |
Field of View | Horizontal 42°, Vertical 26.8° |
Optional Interfaces | USB、RS232 、RS485 、TTL、Wiegand |
Dimension | 90(W)×78(D)×51(H) (max) |
Operating Voltage | 4.8 ~ 16 VDC |
Power Consumption | 1200mW (typ.) |
Current @5V DC | Operating 240mA(RMS Typ.), 300mA(RMS Max) Standby 170mA |
Working Temp. | 0°C~+60°C |
Storage Temp. | -40°C~+70°C |
Humidity | 5%~95% (non-condensing) |
Ambient Light | 0~100,000LUX |
