Y80
Contact UsProduct specifications
Image Sensor
640*480 CMOS
illumination
White LED
Resolution
≥5mil
Symbol Contrast
≥20%
Features
![](https://www.lonvillscan.com/upload/files/article/20231229/17038331321008461.png)
1D
![](https://www.lonvillscan.com/upload/files/article/20231229/17038331325972934.png)
2D
![](https://www.lonvillscan.com/upload/files/article/20231229/17038338963556168.png)
CMOS
![](https://www.lonvillscan.com/upload/files/article/20231229/17038340517656534.png)
USB
![](https://www.lonvillscan.com/upload/files/article/20231229/17038340564638695.png)
RS232
![](https://www.lonvillscan.com/upload/files/article/20231229/17038340612879775.png)
RS485
![](https://www.lonvillscan.com/upload/files/article/20231229/17038341731312644.png)
TTL
Application Scenarios
![](https://www.lonvillscan.com/upload/files/article/20231229/17038419476857286.png)
Access control
Features
Specifications
PRODUCT FEATURES
• Robust Circuit Board Protection:
Three anti-paint protection on the circuit board.
Provides moisture-proof and rust-proof features for enhanced durability.
• Advanced Main Control Chip:
Equipped with a 32-bit main control chip, featuring patented software.
Capable of smoothly decoding reflective, wrinkled, blurred, and colored barcodes.
Reliable decoding in both strong light and dark environments.
• Multi-Language Support:
Default language is English, with additional support for Italian, Spanish, Portuguese, French, German, Japanese, and more.
• Versatile Code Capture:
Enables snappy capture of on-screen codes as well as printed codes.
• Fully Self-Developed Technology:
The barcode scanner is entirely self-developed, featuring a comprehensive set of patents.
It offers a plug-and-play functionality without the need for driver installation.
• Waterproof and Outdoor Use:
Excellent waterproof performance allows for outdoor use.
Suitable for applications such as turnstiles, access control systems, vending machines, ATMs, queue kiosks, payment kiosks, etc.
• Extreme Temperature and Weather Resistance:
High temperature resistance, low temperature resistance, and weather resistance.
Electrical insulation performance for reliable operation in various conditions.
Triple-proof performance includes moisture-proof, salt spray-proof, and mold-proof features.
• Long Life Expectancy:
The high temperature and weather resistance contribute to a prolonged life for the barcode scanner module.

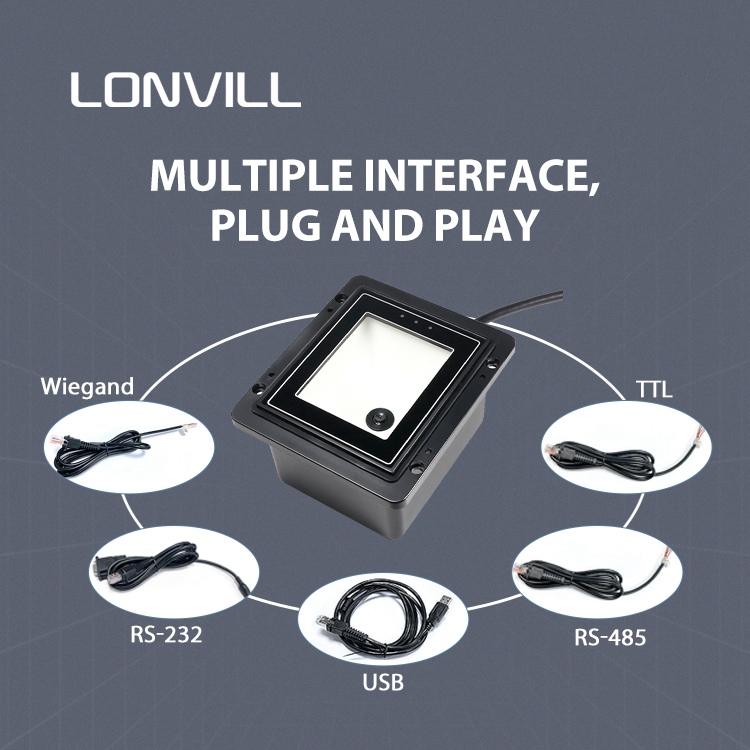

• Rich Communication Interface:
Offers a variety of communication interfaces, including TTL, USB, RS-232, RS-485, and Wiegand 485.Facilitates integration into various industries, such as gate access control.
PRODUCT ATTRIBUTES
Performance | |
---|---|
Image Sensor | 640*480 CMOS |
Illumination | White LED |
Symbologies | 1D: Codabar,Code 39,Code 32,Industrial 2 of 5,Interleaved 2 of 5,Standard 2 of 5, Matrix 2 of 5,Code 93,Code 11,Code 128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13, GS1 DataBar(RSS14),etc. 2D: PDF417,QR Code,Micro QR,Data Matrix,Aztec,Hanxi code,etc. |
Resolution | ≥5mil |
Typical Depth of Field | EAN-13 (13mil) :0mm~80mm(Barcode size:31*7mm) PDF417 (6mil) :0mm~45mm(Barcode size:14*7mm) Code39 (6.6mil) :5mm~30mm(Barcode size:34*10mm) Data Matrix (10mil) :0mm~30mm(Barcode size:5*5mm) QR Code (15mil) :0mm~60mm(Barcode size:10*10mm) |
Field of View | Diagonal 87.1°, horizontal 74°, vertical 65° |
Read Barcode Sensitivity | Tilt ±70°, Deflection ±70°, Rotation 360° |
Symbol Contrast | ≥20% |
Dimensions | 90(W)×78(D)×51(H)mm(Max) |
Interface | USB, RS232, RS485, TTL, Wiegand |
Operating Voltage | 4.8 ~ 16 VDC |
Rated power consumption | 1200mW(typical) |
Current@5 VDC | Operating : 240mA (RMS typical), 300mA (RMS max) Standby :170mA |
Operating Temperature | 0℃~+60℃ |
Storage Temperature | -40℃~+70℃ |
Humidity | 5% to 95% non-condensing |
Ambient light | 0~100,000LUX |
International Certification | FCC CE,RoHS |
Warranty | 2 Year |
