M0103
Contact UsProduct specifications
Image sensor
960*640 CMOS
Motion tolerance
2.2 m / sec
Symbol Contrast
35%
Weight
163g
Size
76.70* 66.62*64.73mm
Features
![](https://www.lonvillscan.com/upload/files/article/20231229/17038313396855837.png)
1D
![](https://www.lonvillscan.com/upload/files/article/20231229/17038313396213428.png)
2D
![](https://www.lonvillscan.com/upload/files/article/20231229/17038313457427615.png)
CMOS
![](https://www.lonvillscan.com/upload/files/article/20231229/17038313509229213.png)
IP54
![](https://www.lonvillscan.com/upload/files/article/20231229/17038313556199478.png)
USB
![](https://www.lonvillscan.com/upload/files/article/20231229/17038399281842260.png)
RS232
![](https://www.lonvillscan.com/upload/files/article/20231229/17038399289158981.png)
RS485
![](https://www.lonvillscan.com/upload/files/article/20231229/17038399286715203.png)
TTL
Application Scenarios
![](https://www.lonvillscan.com/upload/files/article/20231229/17038419156247910.png)
Access control
Features
Specifications
PRODUCT FEATURES
• Fast and Easy Integration:
High speed scanning capabilities and seamless integration.
High-performance design for efficient operations.

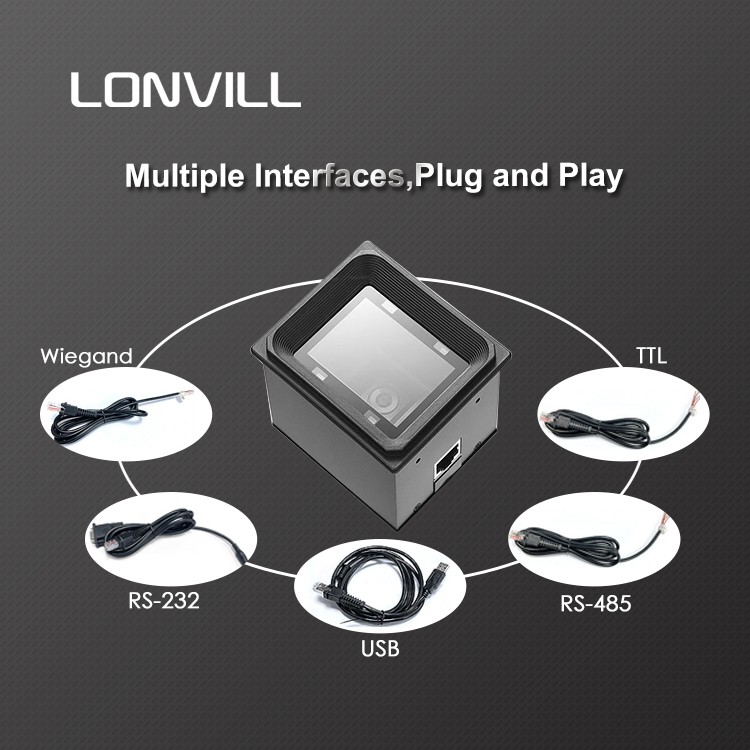

• Versatile Interfaces, Plug and Play:
Multiple interfaces, including USB (HID CDC), Serial port (TTL, RS232, RS485), and Wiegand.
Plug-and-play functionality for easy setup.
• Powerful Decoding Capabilities:
Compatible with most 1D and 2D codes, including QR codes.
Supports various standard symbologies like EAN-13, UPC-E, Code 128, GS1 DataBar, PDF417, and more.
• Adaptable to Various Lighting Conditions:
Works well under strong sunlight and in dark environments.
Cool-colored light for comfortable reading, avoiding dazzling effects.
• Optional Advanced Features:
Optional features include NFC, WiFi, Bluetooth, GPRS, 3G, and 4G.
Customizable indicator voice and display for enhanced user experience.
• Super Fast Sensing & Decoding:
Impressive 2.2m/s motion tolerance.
Large window and long-range scanning for quick and accurate results.
• Durable and Resilient Design:
Drop specifications of 2m ensure durability in challenging environments.
Constructed with ABS material for robust insulation, anti-scratch, and anti-oxidation.
• Compact and Easy Integration:
Small dimensions for easy integration with various self-service equipment.
Suitable for applications such as self-service kiosks, vending machines, smart lockers, turnstiles, and medical diagnostic equipment.
• Multilingual Support:
Supports multiple languages, including English, Français, Deutsch, 한국어, and Español.
The M0103 Fixed Mount 1D/2D Scanner excels in fast and efficient scanning, adaptability to different environments, and seamless integration with a variety of interfaces and optional features.
PRODUCT ATTRIBUTES
Performance | |
---|---|
Image Sensor | 960*640 COMS |
Symbologies: | 1D: EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5, Standard 25,GS1 DataBar(RSS14), GS1 DataBar Limited,GS1 DataBar Expanded, ISBT-128,GS1-128,code39FULLASCII,Plessey,MSI plessey 2D: PDF417,Micro PDF417,QRcode,MicroQR,Datamatrix |
Depth of Field | UPC-13mil: 1cm-14cm Screen 1D: 4cm-17cm Screen 2D: 5cm-30cm |
Motion tolerance | 2.2 m / sec |
Symbol Contrast | 35% |
Scanning Angle | Horizontal : 60° Vertical:70° Rotated:360° |
Environmental Sealing | IP54 |
Working Temperature | -20-55℃ |
Conserve Temperature | -20-60℃ |
Net Weight | 163g |
Host Size(L*W*H) | 76.70mm* 66.62mm*64.73mm |
Communication Interface | USB(Free drive),Serial port(TTL, RS232,RS485), Wiegand |
Operating Voltage | 5V-20V |
USB interface Automatic induction | standby power:110mA/0.55W Working power:98mA/0.49W Working maximum power:125mA/0.625W |
Serial port interface Automatic induction | standby power:110mA/0.55W Working power:98mA/0.49W Working maximum power:125mA/0.625W |
