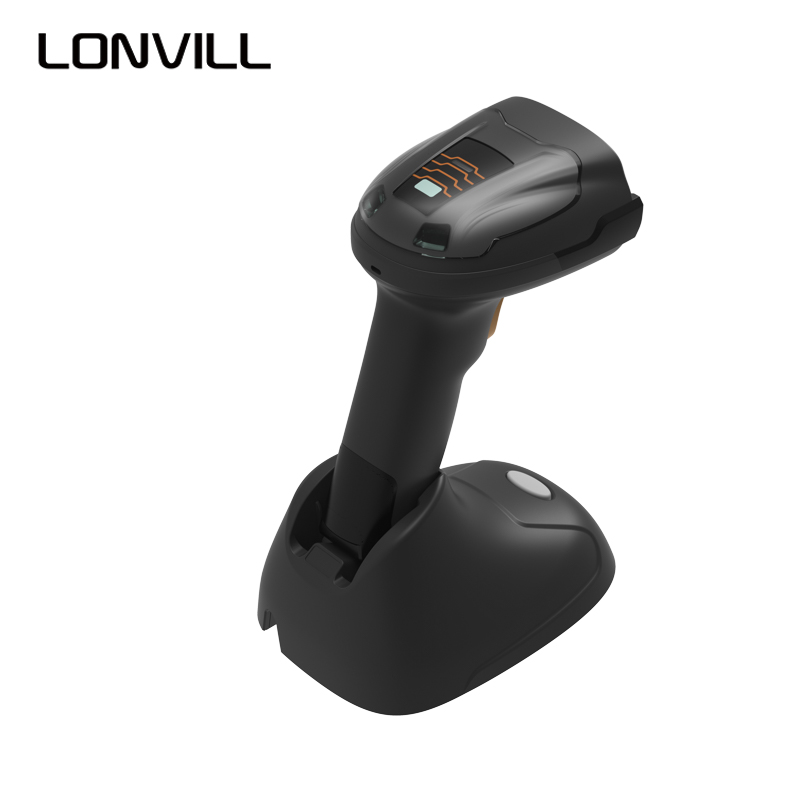

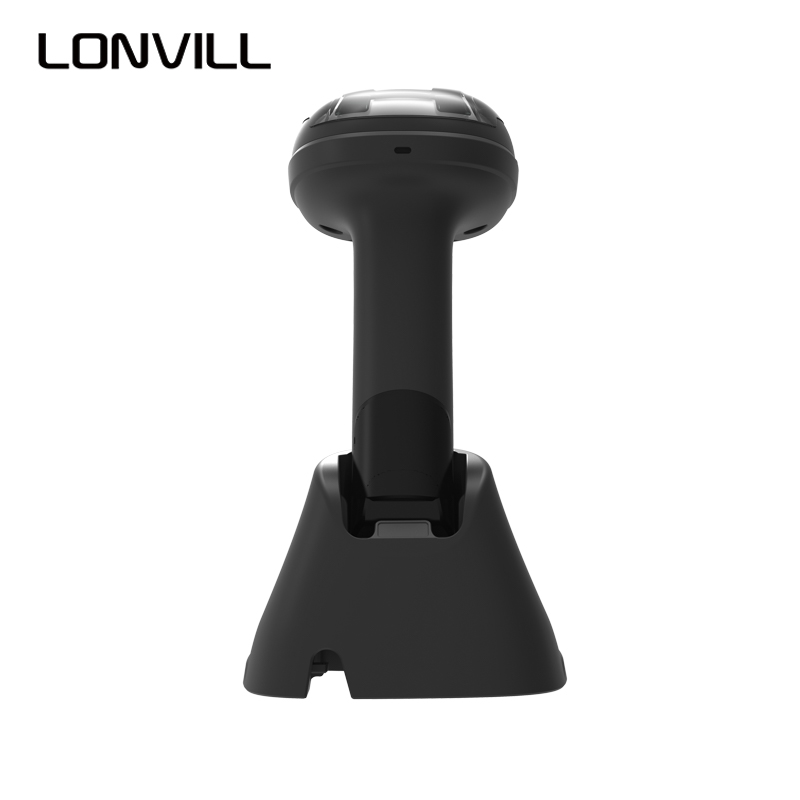

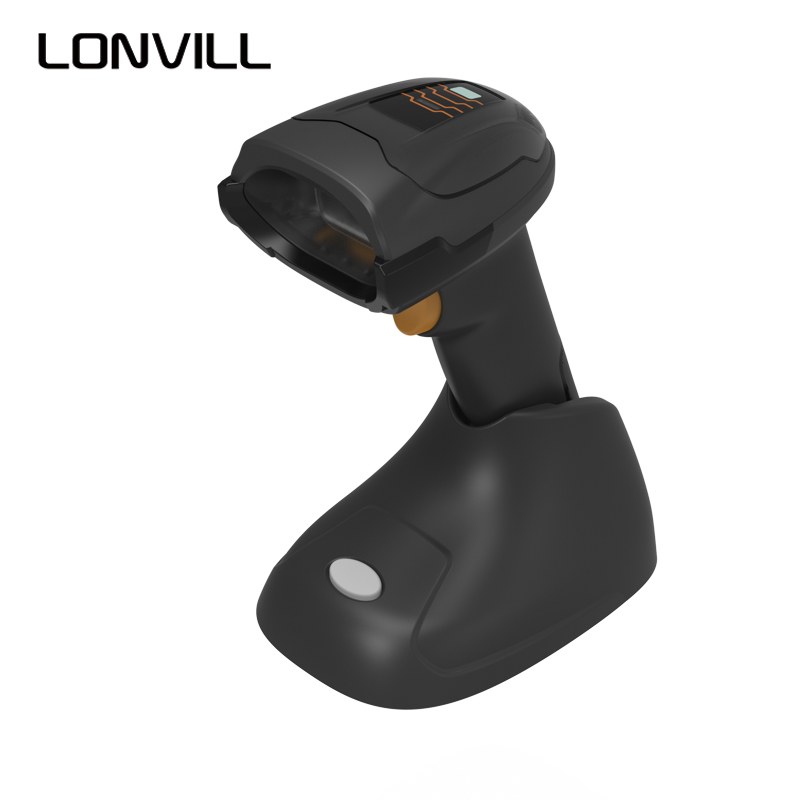

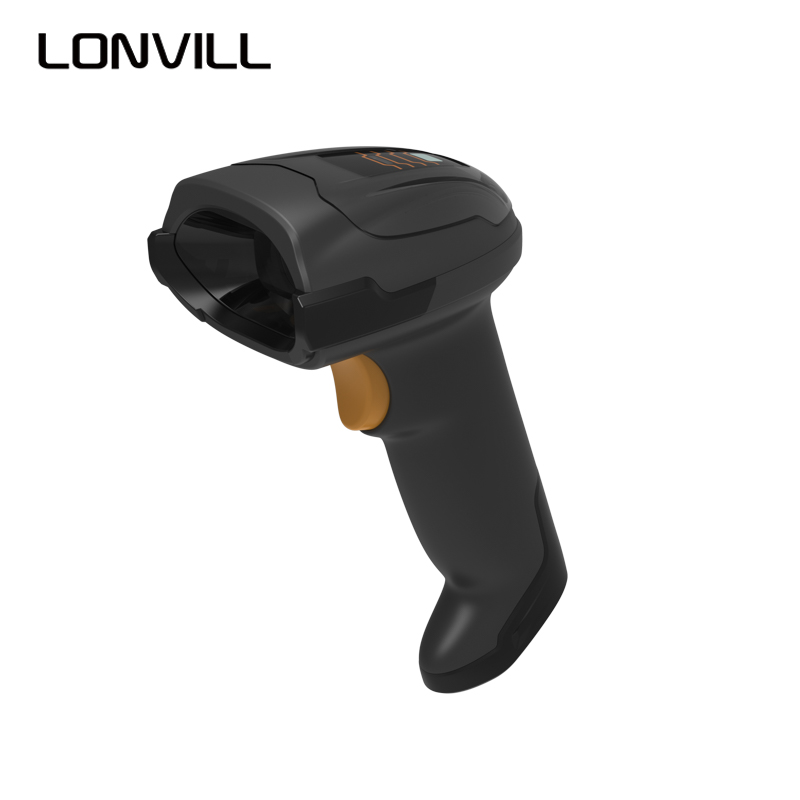

H1302
Contact UsProduct specifications
Image Sensor
1280*800 pixels
Image Field of View
Horizontal: 42° Vertical: 28°
Weight
About 195g（Battery included）+ base145g
Dimensions
173mm(H)* 74mm(W) * 87mm(D)
1D
2D
Blue-Tooth
RFID
Ethernet
Features
Specifications
PRODUCT FEATURES
• Superior Decoding Capabilities
Supports fast reading of poorly printed, wrinkled, faded, distorted, dirty, or damaged barcodes, as well as electronic codes on dark screens.
• Base Configuration
Supports communication between one barcode scanner and multiple bases and multiple barcode scanners and one base
• Charging Configuration
Base powers the scanner: Wireless network port
Base charging: Supports POE
• Industrial Protocols
Supports Modbus TCP, TCP/IP, Profinet, and other industrial protocols
• Radio Frequency Technology
Optional high-frequency and ultra-high-frequency capabilities enable card reading
• Large 2600mAh Battery Capacity
10 hours of continuous use, Extended standby time, Supports scanning while charging
• Product Details
The barcode scanner comes with a built-in screen and anti-static function
PRODUCT ATTRIBUTES
| PHYSICAL CHARACTERISTICS | ||
| Dimensions | Cordless： | |
| 173mm(H)* 74mm(W) * 87mm(D) | ||
| Cordless Bass： | ||
| 133mm(D)* 97mm(W) * 70mm(H) | ||
| Weight | Cordless： | |
| About 195g（Battery included） | ||
| Cordless Bass： | ||
| About 145g（Cable not included） | ||
| Input Voltage Range | Base （DC port）：DC12V | |
| Base （USB ）：DC5V | ||
| Base （POE）：IEEE 802.3af standard(37V-57V) | ||
| Current | Operating：250mA | |
| Base：15mA（Standby）standard USB； | ||
| Color | Gray and Orange | |
| Communication Protocols | USB-keyboard，USB-CDC，Serial，Modbus TCP & Std TCP/IP，Profinet，Ethernet/IP，HTTP | |
| Keyboard Support | Supports multiple international keyboards | |
| User Indicators | Multi-angle decoding LED indicator，Battery indicator LED，Beeper，vibration | |
| PERFORMANCE CHARACTERISTICS | ||
| Aiming | Cross Laser | |
| Illumination | White LED (Adaptive) | |
| Image Field of View | Horizontal：42°，Vertical：28° | |
| Image Sensor | 1280*800 pixels | |
| Minimum Print Contrast | 20%minimum reflective difference | |
| Skew/Pitch/Roll | +/- 60°;+/- 60°;0-360° | |
| Minimum Resolution | SR | Code128：3.33 mil; |
| Data Matrix：8mil; | ||
| HP | Code128：3.13 mil; | |
| Data Matrix：7.13mil; | ||
| USER ENVIRONMENT | ||
| Operating Temp. | -10°C - 50°C | |
| Charging Temp. | 0°C - 40°C | |
| Storage Temp. | -30°C - 70°C | |
| Humidity | 5% – 95% non-condensing | |
| Drop Specification | Withstands multiple 1.2 m drops to concrete | |
| Tumble Specification2 | Multiple tumbles @ 0.5m | |
| Sealing | IP42 | |
| ESD | Corded/Cordless/Base：ESD/EN61000- 4-2、+/-8 KV(air discharge)、+/-2 KV(direct discharge)、+/-4 KV(indirect discharge) | |
| Ambient Light Immunity | 96,840 Lux（diect sunlight） | |
| WIRELESS CONNECTIVITY | ||
| Bluetooth Radio | Standard Bluetooth version 4.2 (BLE supported) | |
| Adjustable Bluetooth power | -20dB-21dB | |
| Radio Range | Direct line of sight in open air: 80 m | |
| BATTERY | ||
| Battery | Capacity：2600mAh | |
| Usable time when fully charged：12hours | ||
| Charging time from empty to fully charged：5 hours（Use 5VDC-2A power supply） | ||
| Charging time from automatic power off to usable state：1.5 hours（Use 5VDC-2A power supply） | ||
| REGULATORY | ||
| Electrical Safety | EN62368，EN62479，EN50663 | |
| Environmental | IEC62321 | |
| IT Emissions | EN55032，EN55035，EN301489，FCC-SDOC Part 15B | |
| IT Immunity | EN55035，FCC-SDOC Part 15C | |
| Harmonic Current Emissions | EN61000-3-2 | |
| Voltage Fluctuation and Flicker | EN61000-3-3 | |
| Radio Frequency Devices | EN300328 | |
| ACCESSORIES | ||
| Communication Base，Matching Data Cable | ||
| DECODE CAPABLITIES | ||
| 1D | Codabar、Code39、Code32、Interleaved 2 of 5(ITF25)、Industrial 2 of 5 、Matrix 2 of 5、Code93、Code11、Code128、Gs1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、ISBN、ISSN、GS1 databar、GS1 databar limited、GS1 databar expanded、ISBT、MSI、Febraban | |
| 2D | PDF417、MICRO PDF417、QR CODE、MICRO QR、DATA MATRIX、AZTEC CODE | |
| DECODE RANGES5 | ||
| Symbology/Resolution | Near/Far | |
| SR | HP | |
| Code39 :3.33 mil | 35mm - 145mm | 5mm - 115mm |
| Code39 :10 mil | 15mm - 485mm | 10mm - 385mm |
| Code128 :6.66 mil | 0mm - 285mm | 0mm - 255mm |
| Code128 :13.33 mil | 0mm - 565mm | 0mm - 455mm |
| Data Matrix:10 mil | 0mm - 235mm | 0mm - 205mm |
| QR:20 mil | 0mm - 335mm | 0mm - 305mm |
