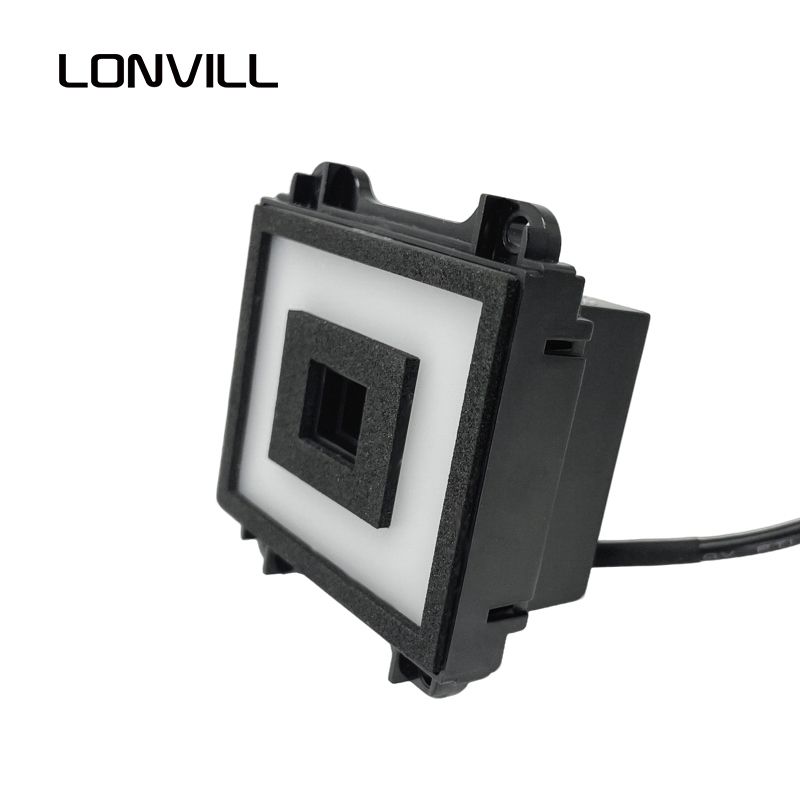

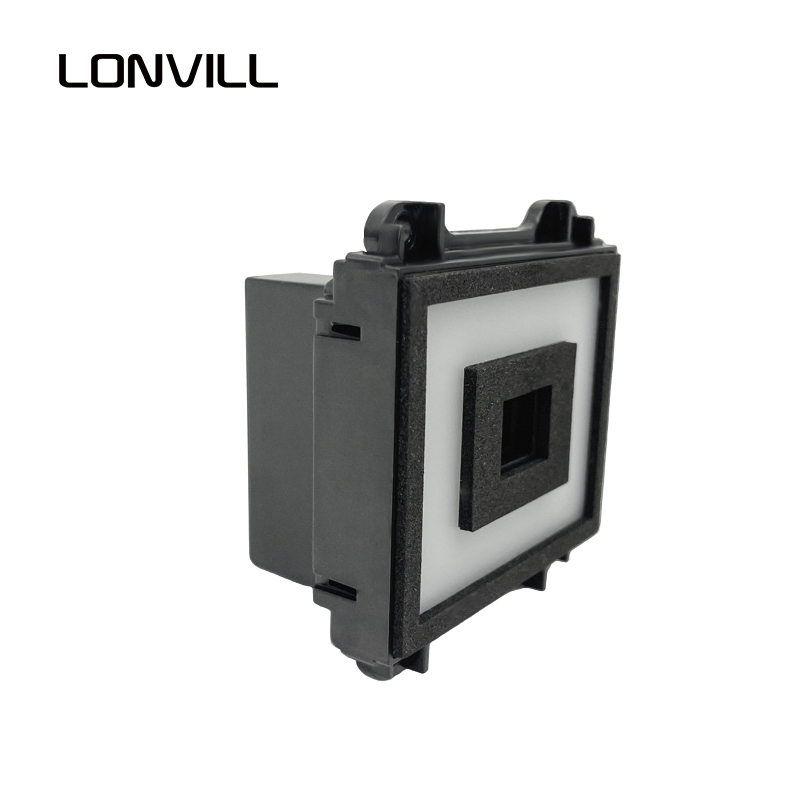

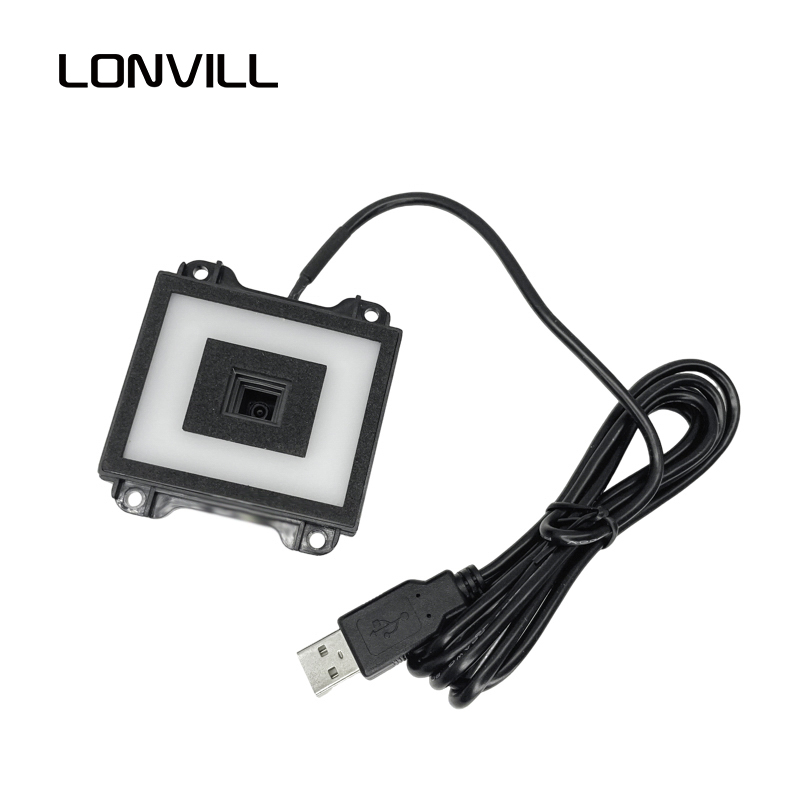

Home Products Barcode Scanner Barcode Scan Module / Engine for Parking Lot M1513

M1513

Product specifications

Motion tolerance

130cm/s

Dimensions

65mm×61mm×31mm

Sensor

CMOS sensor,1M pixels,120 fps

Reading Depth of Field

Payment Code 5-170cm

Communication Interface

USB、TTL、RS232、RS485

Features

CMOS

USB

RS232

RS485

TTL232

Application Scenarios

Parking lot

Features

Specifications

PRODUCT FEATURES

• High Compatibility

Works well in both darkness and bright light

• Suitable for Outdoor Use

Barcodes can be read remotely without getting off the car. Whether it's sunny, cloudy, rainy, foggy, sandstorm or other weather conditions, the scanner can operate stably.

• Fast Decoding Speed

Motion tolerance: Up to 130 cm/s (48mil QR)

• Long-range 2D scanner

It applies intelligent image recognition technology and adopts advanced optical design to provide high-performance, high-reliability, long-distance, and low-power reading products.

PRODUCT ATTRIBUTES

Hardware Parameters
Sensor	CMOS sensor,1M pixels,120 fps
Code Reading System	1D Code128 2D QR Code
Reading Depth of Field	Payment Code 5-170cm
Trigger Mode	Command trigger, Continuous trigger
Field of View	Horizontal 43° Vertical 27°
Scan Angle	Roll 360°, Pitch±59°,Skew±60°
Motion tolerance	130cm/s
Mechanical/Electrical Parameters
Communication Interface	USB、TTL、RS232、RS485
Dimensions	65mm×61mm×31mm
Prompt Mode	Buzzer, Status light
Working voltage	5.0VDC±5%
Power Consumption Parameters	Working Current 191mA(Max),175mA(Working) Idle Current 145mA(Standby),87mA(Hibernate)
Environmental Parameters
Working Temperature	-20°C~+60°C
Storage Temperature	-40°C~+85°C
Working Humidity	5%-95%(Non-condensing)
Ambient Light Intensity	0-100,000LUX
