Home Products Barcode Scanner Barcode Scan Module / Engine for Elevator M2304

M2304

Product specifications

Decode Capability

1D/2D

Dimension

40mm*21mm*13.2mm

Weight

Reading speed

＜200ms

Interface

Wiegand/USB/RS232/RS485/TTL

Features

1D Barcode

2D Barcode

CMOS

USB

RS232

RS485

Wiegand

TTL

Applications

Elevator

Features

Specifications

PRODUCT FEATURES

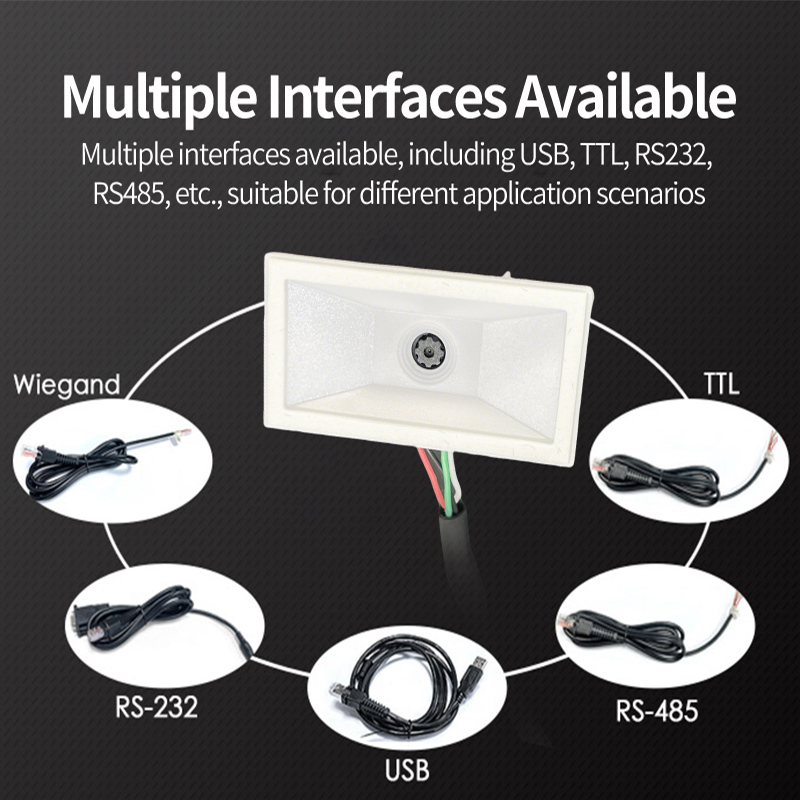

• Multiple Interfaces Available

Multiple interfaces available, including USB, TTL, RS232, RS485, etc., suitable for different application scenarios

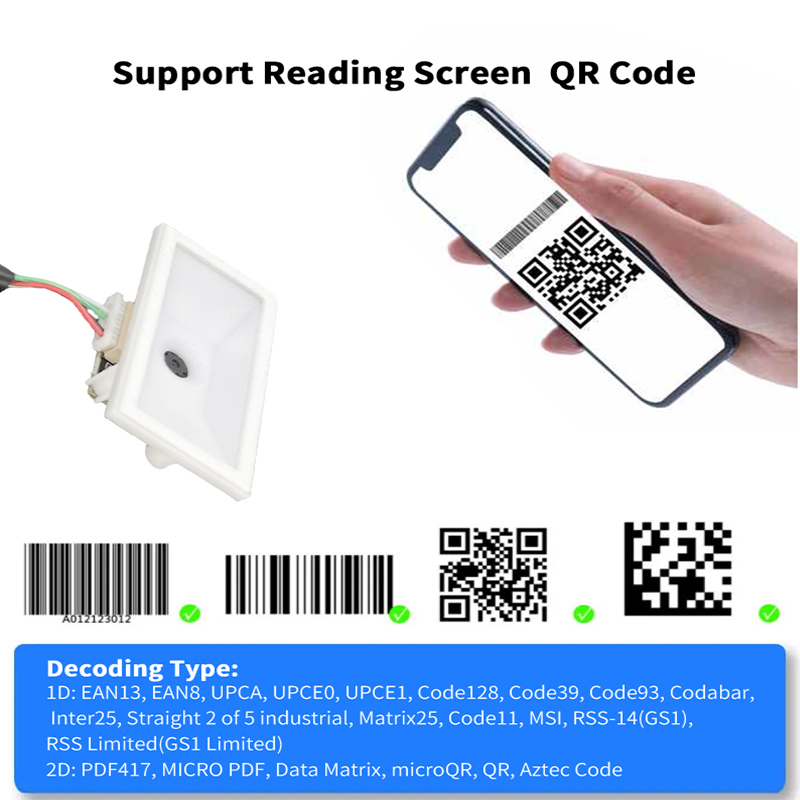

• Rich Decoding Types

High-precision barcode reading, easily identifying all mainstream 1D and 2D barcodes in the market

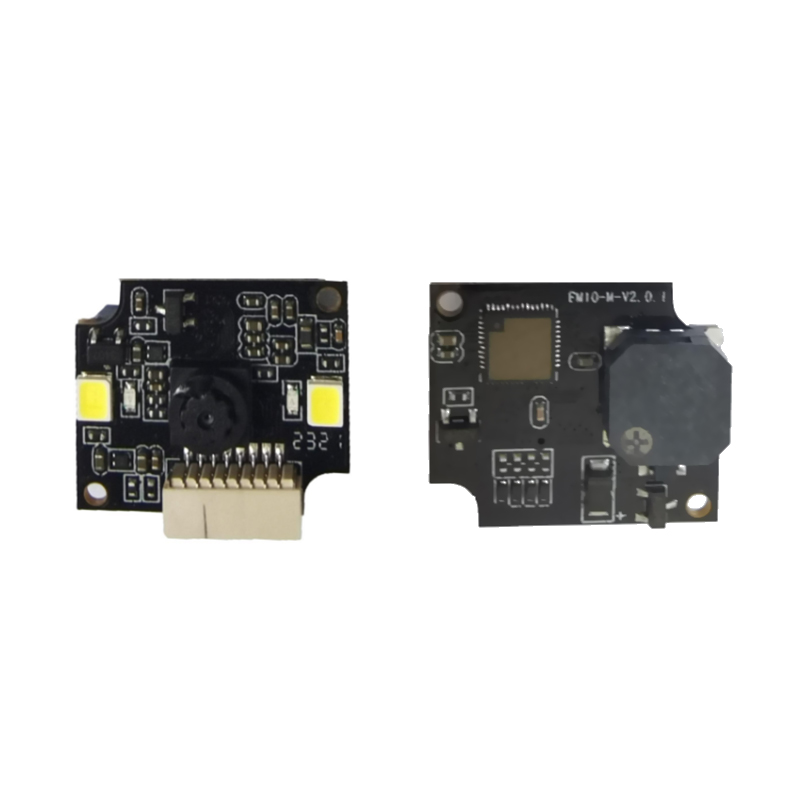

• Soft white light illumination

With white light LED to provide exposure auxiliary lighting, it can achieve fast and stable code scanning effect in low ambient brightness. With green LED indicator and buzzer, it can intuitively prompt the scanning result after successful reading.

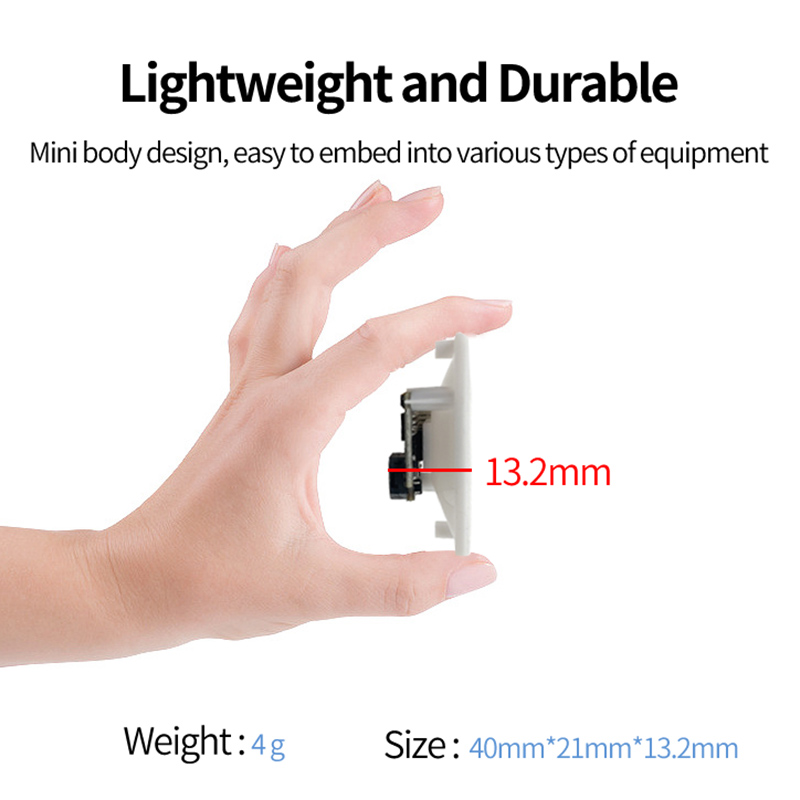

• Small size

Mini body design, easy to embed into various types of equipment. Weight: 4g. Size: 40mm*21mm*13.2mm

PRODUCT ATTRIBUTES

Project	Parameter	Project	Parameter
Dimensions	40mm21mm13.2mm	Prompting mode	Buzzer, LED indicator
Weight	4g	Input Voltage	DC 5V±5% (3.3V optional)
Interface	USB HID、UART TTL	Power	MAX 350mA, Normal 80mA, Standby 40mA
Trigger mode	Auto-sensing, continuous reading, command trigger	Image Sensor	640*480CMOS
Parameter setting mode	canning QR code to set parameters or host command setting	Field of view	Horizontal 68°, Vertical 55
Scanning Angle	Inclination ±45°, Rotation 360	Humidity	5%~95%(non-condensing)
Decoding Type	1D: EAN13, EAN8, UPCA, UPCE0, UPCE1, Code128, Code39, Code93, Codabar, Inter25, Straight 2 of 5 industrial, Matrix25, Code11, MSI, RSS-14(GS1), RSS Limited(GS1 Limited) 2D: PDF417, MICRO PDF, Data Matrix, microQR, QR, Aztec Code	Depth of field	13mil UPC (20-180mm) 5mil Code128 (25-65mm) 10mil Code128 (25-140mm) 20mil QR (20-220mm)
Minimum Resolution	≥5mil，1mil = 0.0254mm	Environmental illuminance	0~100,000 LUX
Operating Temperature	-30 ~ +60°C	Storage Temperature	-40°C ~ +70°C
