Access Control Barcode Scan Module: The Core Solution for Secure & Efficient Entry Management

Traditional access methods like cards and PINs are vulnerable to loss and duplication. An access control barcode scanner solves this by enabling secure, contactless smartphone entry, drastically speeding up throughput. However, deploying a reliable QR code reader for access control requires hardware that overcomes real-world challenges:

Key Challenges Solved:

• Millisecond Decoding: Prevents bottlenecks in high-traffic areas like lobbies and transit gates.
• Screen & Print Compatibility: A versatile barcode access control reader must instantly read both printed 1D/2D codes and dynamic smartphone screens.
• Extreme Light Adaptability: Auto-illuminates in the dark and resists strong sunlight glare for 24/7 reliability.
• Seamless Integration: Must support Wiegand, RS-232, RS-485, and TTL to act as a flexible Wiegand QR code reader and connect effortlessly with existing controllers.
• Rugged & Efficient: Features tamper-resistant housings, low power consumption, and wide-temperature tolerance for harsh outdoor deployments.

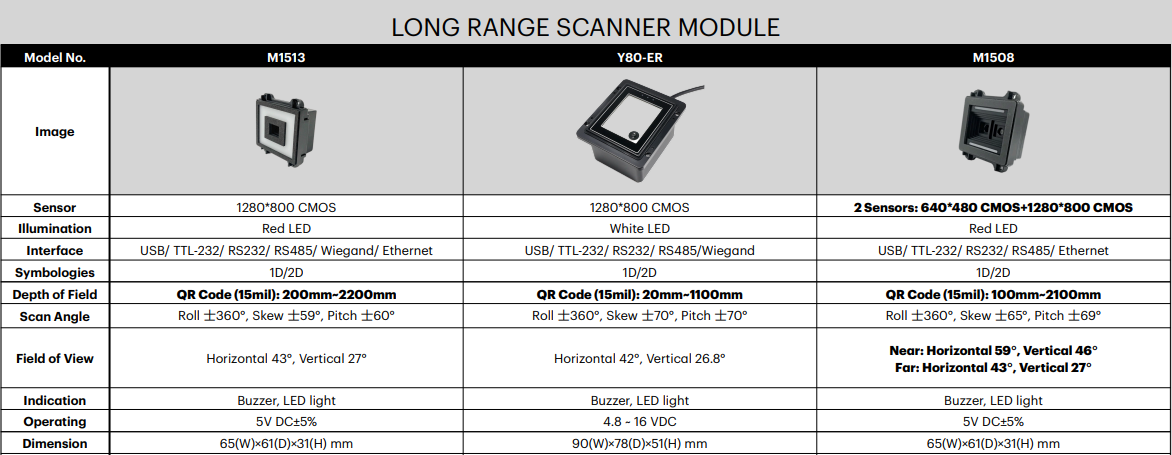

Recommended Products: Three Professional-Grade LONVILL Access Control Scanner Modules

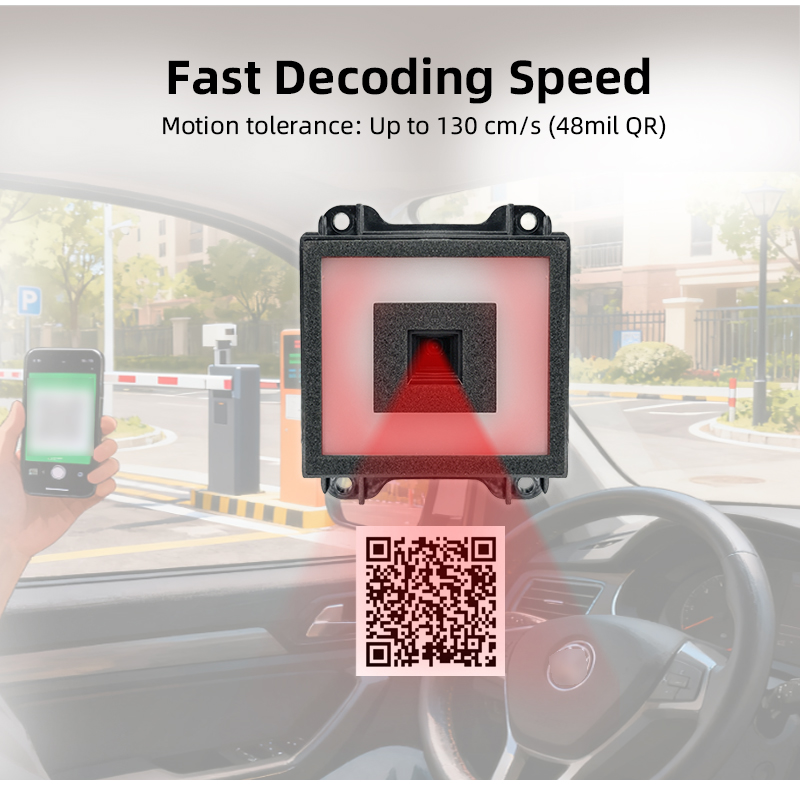

1. M1513 - Long-Range Access Control Scanner Module

Ideal for: Vehicle Access Management, Outdoor Turnstiles, Parking Lots

• 2.2m Ultra-Long Reading Distance: QR Code (15mil) depth of field reaches 200-2200mm, allowing drivers to scan without rolling down windows, dramatically improving vehicle throughput
• Full Interface Support: USB/TTL-232/RS232/RS485/Wiegand/Ethernet, perfectly compatible with mainstream access controllers and networked management systems
• 360° Omnidirectional Scanning: Roll ±360°, supports scanning from any angle, reducing user operation difficulty
• Compact Embedded Design: Only 65×61×31mm, easily embedded into turnstiles, pillars, and other equipment

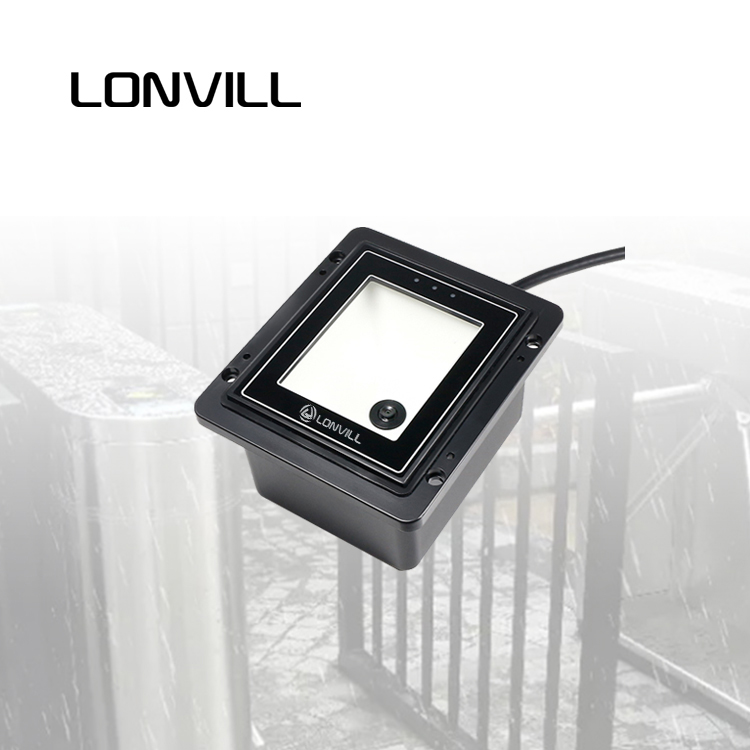

2. Y80-ER - Outdoor Waterproof Scanner Module

Ideal for: Pedestrian Channels, Revolving Doors, Outdoor Access Control, Residential Entrances

• IP65 Protection Level: Circuit board with three-anti coating (moisture-proof, rust-proof, dust-proof), supports underwater scanning, fearless of rain and snow
• Wide Voltage Supply: 4.8-16V DC wide voltage design, compatible with PoE, battery power, and other deployment scenarios
• White LED Illumination: White LED lighting provides higher recognition rates for smartphone screen codes (e-tickets, payment codes)
• Strong Light/Low Light Adaptability: Flexible 20mm-1100mm depth of  field ensures stable performance in both underground garages and outdoor strong sunlight
• Wiegand Protocol Support: Plug-and-play integration with HID, Bosch, Honeywell, and other mainstream access control systems

3. M1508 - Dual-Sensor Intelligent Switching Module

Ideal for: Mixed Traffic Scenarios (Pedestrian & Vehicle), Multi-Function Turnstiles, Smart Parks

• Dual-Sensor Design: 640×480 (near) + 1280×800 (far) dual CMOS sensors with automatic near/far mode switching
• Dual Field of View Coverage: Near mode 59°×46° wide FOV for fast pedestrian scanning (starting from 100mm); Far mode 43°×27° narrow FOV for precise long-distance vehicle code capture (up to 2100mm)
• One Device, Multiple Uses: Single unit meets both pedestrian and vehicle access needs, reducing hardware procurement and maintenance costs
• Ethernet Support: USB/TTL-232/RS232/RS485/Ethernet interfaces enable cloud management and remote diagnostics

About LONVILL

We are a high-tech enterprise specializing in IoT identification technology, with 20+ years of deep expertise in barcode scanning. Our core product portfolio includes embedded barcode scan modules, fixed-mount barcode scanners, handheld terminals, and Wiegand barcode readers — serving industries ranging from access control security and smart retail to industrial automation, healthcare, and logistics.

Why Choose Us?

• Full Certifications: Products carry CE, FCC, RoHS, and BIS certifications, meeting market access requirements across global regions.
• Flexible Customization: OEM/ODM services available — we can customize housing design, interface protocols, scanning windows, and more to match your project specifications.
• End-to-End Support: Complete technical documentation, integration guides, and video tutorials are provided, backed by a professional engineering team offering both remote and on-site assistance.

Whether you are designing an access control system for a smart office tower or sourcing a reliable e-ticket validation solution for a tourist attraction, we can deliver the right QR code Wiegand reader solution for your needs.

Fill out the form below or call us directly. Our technical team will respond within 24 hours to provide a tailored access control scanning solution for your project.
